XIN TONG MYUNG 418-18-31102 A4VG90 Hydraulic Pump Parts
Quantity:
A4VG90

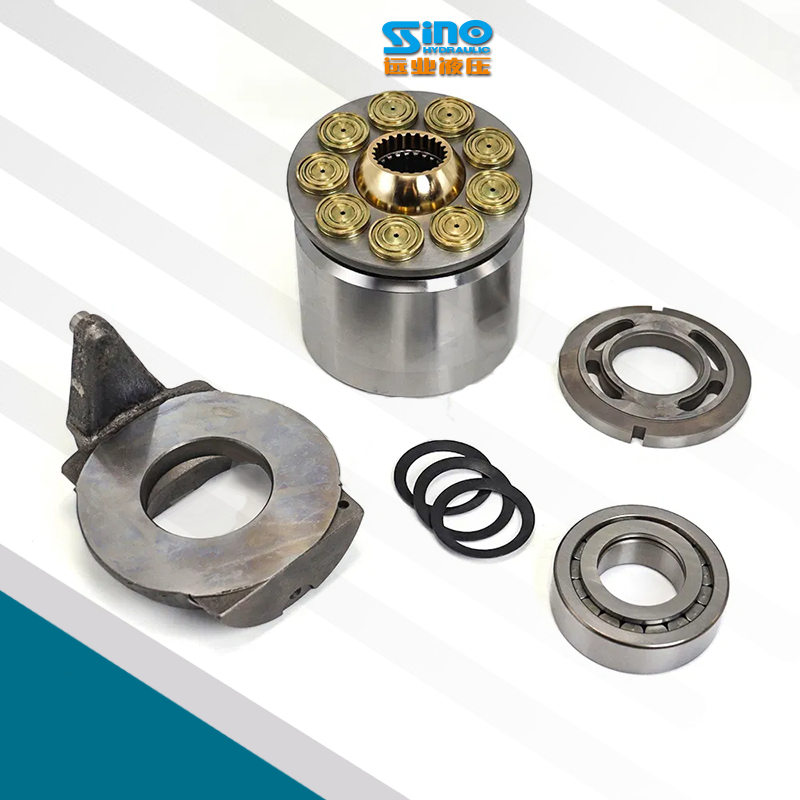

A4VG90 Hydraulic Spare Parts is a hydraulic piston pump spare parts
A4VG90 Hydraulic Spare Parts
A4VG90 is a highly renowned high-pressure closed-type hydraulic piston main pump developed by Bosch Rexroth. Its displacement is 90 cm³ per revolution. This pump is specifically designed for closed circuit (Closed Circuit) static hydraulic transmission and is widely used in large concrete mixer trucks (such as those with drum drives from brands like FAW, Sinotruk, and Sany), road rollers, large slewing loaders, combine harvesters, and various heavy-duty mobile machinery's main drive systems. Due to the fact that the internal pump core of the closed pump will bear huge pressure and high-frequency friction when it is under heavy-load walking and frequent forward-reverse switching, the rotating components (Rotary Group) are prone to wear. Currently, in the global hydraulic after-sales parts market, the supply chain for spare parts and complete overhaul packages of this model is extremely mature.More models are waiting for you to choose, you are welcome to contact customer service：
| Model/规格型号 | 存货名称 | Product name | Model used/适用机型 |
| A4VG90 Hydraulic Pump Parts | 柱塞泵总成 | MAIN PUMP | A4VG90,WA200-5,417-18-31101,417-18-31102,417-18-41100.R971025460.WA200-6.WA250.WA270-5.207-4710-03.28131945.A4V90DA2D2/32R,WA270-5.WA270-6,418-18-31102.. |
| A4VG90 Hydraulic Pump Parts | 缸体 | CYLINDER BLOCK | A4VG90，A4VTG90HW/32R,HM7X100-001. |
| A4VG90 Hydraulic Pump Parts | 配油盘R | VALVE PLATE R | A4VG90，A4VTG90HW/32R,HM7X100-001. |
| A4VG90 Hydraulic Pump Parts | 配油盘L | VALVE PLATE L | A4VG90，A4VTG90HW/32R,HM7X100-001. |
| A4VG90 Hydraulic Pump Parts | 柱塞 | PISTON SHOE | A4VG90，A4VTG90HW/32R,HM7X100-001. |
| A4VG90 Hydraulic Pump Parts | 球铰 | BALL GUIDE | A4VG90，A4VTG90HW/32R,HM7X100-001. |
| A4VG90 Hydraulic Pump Parts | 回程盘 | SET PLATE | A4VG90，A4VTG90HW/32R,HM7X100-001. |
| A4VG90 Hydraulic Pump Parts | 摇摆 | SWASH PLATE | A4VG90，A4VTG90HW/32R,HM7X100-001. |
| A4VG90 Hydraulic Pump Parts | 传动轴 R | DRIVE SHAFT | A4VG90，A4VTG90HW/32R, |
| A4VG90 Hydraulic Pump Parts | 传动轴 L | DRIVE SHAFT | A4VG90，A4VTG90HW/32R, |
| A4VG90 Hydraulic Pump Parts | 补油泵 | CHARGE PUMP | A4VG90，A4VTG90HW/32R,1 |
| A4VG90 Hydraulic Pump Parts | 球铰垫片 | RETAINER WASHER | A4VG90，A4VTG90HW/32R,HM7X100-001. |
| A4VG90 Hydraulic Pump Parts | 碟形弹簧 | DISK SPRING | A4VG90，A4VTG90HW/32R,HM7X100-001. |
| A4VG90 Hydraulic Pump Parts | 月牙轴承（套） | SADDLE BEARING | A4VG90，A4VTG90HW/32R,，A4VTG90,HM7X100-001. |
| A4VG90 Hydraulic Pump Parts | 大弹簧 | COIL SPRING | A4VG90，A4VTG90HW/32R,HM7X100-001. |
| A4VG90 Hydraulic Pump Parts | 修理包 | REPAIR KIT | A4VG90，A4VTG90HW/32R, |
**"Hydraulic Components: The Powerhouse of Precision and Performance"**
When it comes to reliability, efficiency, and unmatched durability, hydraulic components stand as the backbone of modern industrial and mechanical systems. Engineered to deliver exceptional force transmission with minimal energy loss, these components—including pumps, valves, cylinders, and motors—are designed to withstand extreme pressures and demanding environments.
