Sino Hydraulic PVH98 Hydraulic Pump Parts

Quantity:

Contact Now

add to cart

PVH98

Vickers PVH98 is a hydraulic piston pump spare part for Vickers.

Vickers PVH98 Spare Parts

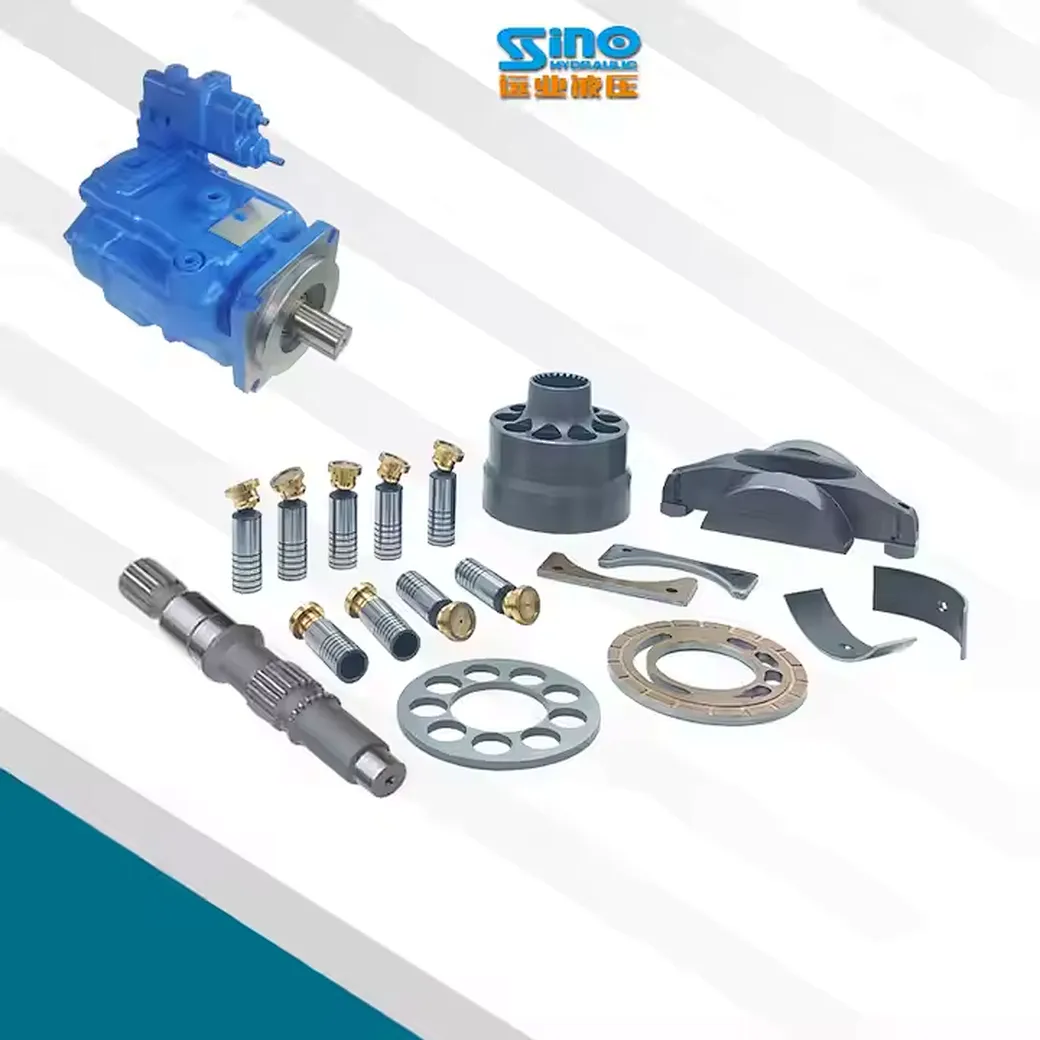

The Eaton Vickers PVH98 series diaphragm axial piston hydraulic pump accessories are precision replacement components used for major overhauls and maintenance of this 98 cc/rev high-displacement heavy-duty high-pressure main pump. PVH98 is widely installed in Caterpillar excavators (such as the CAT 320B walking/main pump configuration), loaders, concrete pumpers, road graders, and various heavy industrial hydraulic stations, capable of withstanding a rated working pressure of up to 250 bar and a peak pressure of 280 bar.More models are waiting for you to choose, you are welcome to contact customer service：

Model/规格型号	存货名称	Product name	Model used/适用机型
PVH98 Hydraulic Pump Parts	缸体	CYLINDER BLOCK	PVH98,CAT140G,9T7774.
PVH98 Hydraulic Pump Parts	配油盘R(4孔）	VALVE PLATE (R) (4 HOLES)	PVH98,
PVH98 Hydraulic Pump Parts	配油盘L(4孔）	VALVE PLATE (L) (4 HOLES)	PVH98,
PVH98 Hydraulic Pump Parts	配油盘R(5孔）	VALVE PLATE (R) (5 HOLES)	PVH98,9T7775.
PVH98 Hydraulic Pump Parts	配油盘L(5孔）	VALVE PLATE (L) (5 HOLES)	PVH98,CAT140G,
PVH98 Hydraulic Pump Parts	柱塞	PISTON SHOE	PVH98,CAT140G,
PVH98 Hydraulic Pump Parts	回程盘	SET PLATE	PVH98,CAT140G,9T7767.
PVH98 Hydraulic Pump Parts	止推板（PVE47)	SHOE PLATE	PVH98,CAT140G,PVE47.9T7768.
PVH98 Hydraulic Pump Parts	摇摆	SWASH PLATE	PVH98,CAT140G,100-3416.
PVH98 Hydraulic Pump Parts	轴瓦24	METAL 24	PVH98,CAT140G,
PVH98 Hydraulic Pump Parts	轴瓦38.3	METAL 38.3	PVH98,CAT140G,
PVH98 Hydraulic Pump Parts	固定垫圈（PVE47)	FIX PLATE	PVH98,CAT140G,PVE47.
PVH98 Hydraulic Pump Parts	传动轴（平键）	DRIVE SHAFT	PVH98,CAT140G,
PVH98 Hydraulic Pump Parts	修理包	SEAL KIT	PVH98,CAT140G,

**"Hydraulic Components: The Powerhouse of Precision and Performance"**

When it comes to reliability, efficiency, and unmatched durability, hydraulic components stand as the backbone of modern industrial and mechanical systems. Engineered to deliver exceptional force transmission with minimal energy loss, these components—including pumps, valves, cylinders, and motors—are designed to withstand extreme pressures and demanding environments.
